Raw textures reveal timeless elegance
X3D Turbo Mode 2.0
Incredible X3D performance unleashed by AI
DDR5 OC up to 9000MT/s
DriverBIOS
Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
AMD Socket AM5
Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Digital twin 16+2+2 phases VRM solution
Dual Channel DDR5
4*DIMMs with AMD EXPO™Memory Module Support
M.2 EZ-Flex
high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
WIFI EZ-Plug
Quick and easy design for Wi-Fi antenna installation
M.2 EZ-Latch Click & Plus
Quick Release & Screwless Design on M.2 slots and heatsinks
Friendly UI
Multi-Theme, One click to screenshot, and Click to go BIOS path in BIOS
Ultra-Fast Storage
4*M.2 slots, including PCIe 5.0 x4
PCB Thermal Plate
14% thermal improvement and reinforced motherboard stability.
Efficient Thermal
VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.
Fast Networking
Dual 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity
HDMI, Dual USB4 Type-C with DP-Alt
PCIe UD Slot X
PCIe 5.0 x16 slot with 10X strength for graphics card
|
Brand |
Gigabyte |
|
Model |

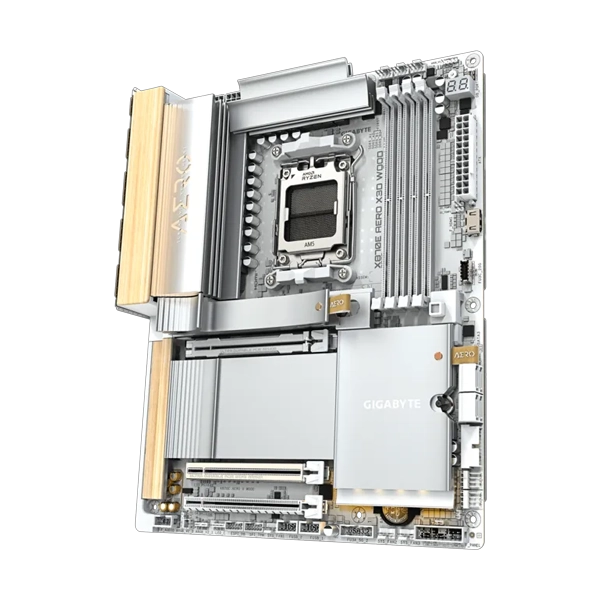

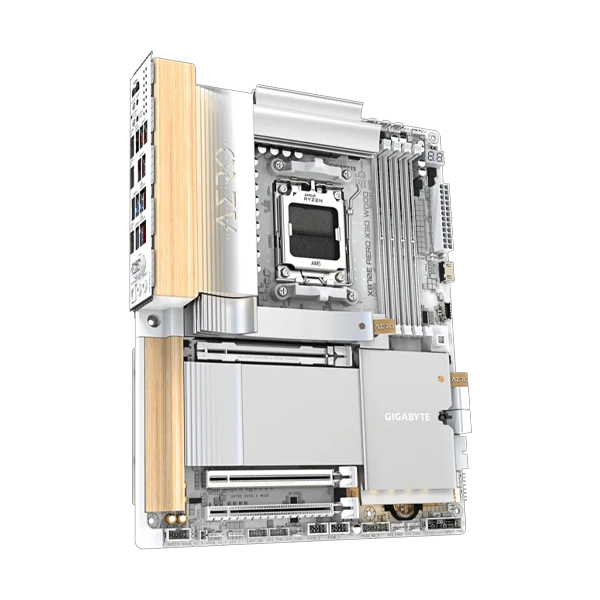

X870E AERO X3D WOOD |
|
Colour |
White |
|
CPU Socket |
AMD Socket AM5 |
|
Supported Processors |
AMD Ryzen™ 9000 Series / 8000 Series / 7000 Series (check GIGABYTE CPU support list for latest) |
|
Chipset |
AMD X870E |
|
Memory |
4 × DDR5 DIMM sockets, up to 256 GB (64 GB single DIMM max) Dual channel architecture Supports DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7400(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s AMD EXPO™ and Intel XMP support Non-ECC Un-buffered DIMM support |
|
Onboard Graphics |
Integrated AMD Radeon™ Graphics (via CPU) + ASMedia USB4® Controller 2 × USB4® Type-C ports (DisplayPort, max 3840×2160@240 Hz) 1 × HDMI 2.1 (max 4096×2160@60 Hz) 1 × Front HDMI (max 1920×1080@30 Hz) |
|
Audio |
Realtek® ALC1220 CODEC High Definition Audio 2/4/5.1/7.1-channel S/PDIF Out support DSD audio support on line out |
|
LAN |
2 × Realtek® 5GbE LAN chips (5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps) |
|
Wireless |
MediaTek Wi-Fi 7 MT7927 (RZ738) 802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz bands, 320 MHz channel Bluetooth 5.4 (Wi-Fi 7 requires Windows 11 SV3; 6 GHz availability varies by country) |
|
Expansion Slots |
1 × PCIe 5.0 x16 (PCIEX16) – CPU (PCIe 5.0 x16 on Ryzen 9000/7000, PCIe 4.0 x8/x4 on 8000 series) 1 × PCIe 5.0 x8 (PCIEX8) – CPU (shares with PCIEX16) 1 × PCIe 4.0 x4 (PCIEX4) – Chipset |
|
Storage |
4 × M.2 (Socket 3, M key): - M2A_CPU & M2B_CPU: PCIe 5.0 x4/x2 (CPU) - M2C_SB & M2D_SB: PCIe 4.0 x4/x2 (Chipset) 4 × SATA 6Gb/s RAID 0/1/5/10 (NVMe), RAID 0/1/10 (SATA) |
|
USB (Rear I/O) |
2 × USB4® Type-C 1 × USB 3.2 Gen 2 Type-C 5 × USB 3.2 Gen 2 Type-A (red) 3 × USB 3.2 Gen 1 2 × RJ-45 (5GbE) |
|
USB (Internal Headers) |
1 × USB 3.2 Gen 2x2 Type-C 2 × USB 3.2 Gen 1 2 × USB 2.0/1.1 |
|
Internal I/O Connectors |
1 × 24-pin ATX, 2 × 8-pin CPU power Multiple fan/pump headers, RGB/ARGB headers, TPM, Q-Flash Plus, etc. |
|
Back Panel I/O |
HDMI 2.1, 2 × USB4® Type-C (DP), 1 × USB-C 3.2 Gen 2x2, 5 × USB 3.2 Gen 2 Type-A, 3 × USB 3.2 Gen 1, 2 × 5GbE RJ-45, optical S/PDIF, 2 × audio jacks |
|
I/O Controller |
iTE® I/O Controller Chip |
|
H/W Monitoring |
Voltage, temperature, fan speed, water cooling flow, fan fail warning, fan speed control, noise detection |
|
BIOS |
256 Mbit flash, AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
Unique Features |
GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
|
Bundled Software |
Norton® Internet Security (OEM version) |
|
Operating System |
Windows 11 64-bit support |
|
Form Factor |
ATX; 30.5 cm × 24.4 cm |
|
Warranty |
3 Years |
|
Note* |
Price, feature and specifications are subject to change without notice. |
