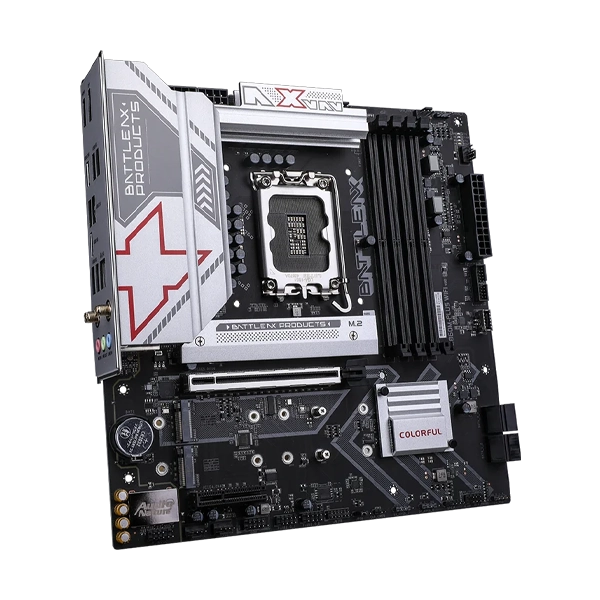

The Colorful BATTLE-AX B860M-PLUS WIFI V20 combines next-generation hardware support with reliable stability for gamers and creators. Powered by the Intel B860 chipset, it supports Intel® Core™ Ultra processors with the latest LGA 1851 socket. Its 10+1+1+1 phase enhanced power supply ensures efficient power delivery, while the customized frost cooling armor with full-cover condensers provides superior heat dissipation.
The motherboard offers flexible expansion with 3 M.2 SSD slots, including one PCIe 5.0 x4 and two PCIe 4.0 x4, along with 4 SATA 6Gb/s ports and RAID support for optimal storage configurations. Connectivity is comprehensive with high-speed USB 3.2 Gen 2×2 Type-C, HDMI 2.0, and DP 1.4 for up to 8K displays. Networking is powered by a Realtek 2.5G LAN and AX101 WiFi 6 with Bluetooth 5.2.
Additional features include support for DDR5 memory up to 192GB at speeds of DDR5-7600(OC), iGame Center lighting synchronization, six-layer protection technologies, and upgraded PCB atomization for durability. Strictly tested across 200 processes, this board guarantees long-term reliability.
Customized frost cooling armor with full-cover condenser for heat dissipation
10+1+1+1 phase enhanced power supply (DrMOS 60A)
Supports Intel® Core™ Ultra processors (LGA 1851)
4×DDR5 slots, up to 192GB, DDR5-7600(OC) support
3×M.2 slots (1×PCIe 5.0 x4, 2×PCIe 4.0 x4) with RAID support
Realtek 2.5G LAN + AX101 WiFi 6 + Bluetooth 5.2
1×USB 3.2 Gen 2×2 20Gbps Type-C + multiple high-speed USB ports
HDMI 2.0 + DP 1.4 for up to 8K resolution output
Six protection technologies & 200 strict quality tests
iGame Center for synchronized RGB lighting control
|
Brand |
Colorful |
|
Model |
BA-B860M-PL-WF-V20 |
|
Product Series |
BATTLE-AX Series |
|
Chipset |
Intel B860 |
|
Processor Support |
Intel® Core™ Ultra processors (LGA 1851 socket) |
|
Memory |
4×DDR5 slots, up to 192GB (48GB per slot), DDR5-7600(OC) |
|
Memory Tech |
Dual-channel, Intel® XMP support |
|
SATA / Storage |
3×M.2 (1×PCIe 5.0 x4, 2×PCIe 4.0 x4), 4×SATA 6Gb/s, RAID 0/1/5/10 |
|
Expansion Slots |
1×PCIe 5.0 x16, 1×PCIe 4.0 x4 |
|
Rear I/O |

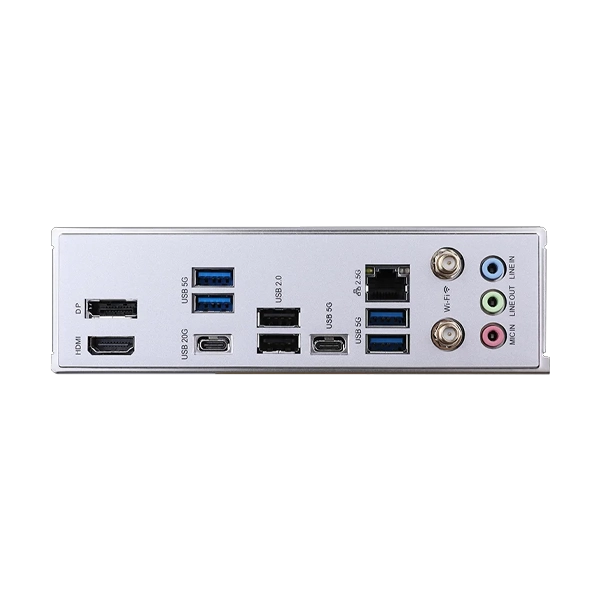

2×USB 2.0, 4×USB 3.2 Gen 1 Type-A, 1×USB 3.2 Gen 1 Type-C, 1×USB 3.2 Gen 2×2 Type-C, 1×DP 1.4, 1×HDMI 2.0, 1×2.5G LAN, 2×WiFi antennas, 3×Audio jacks |
|
Onboard Headers |
Multiple USB headers, CPU/system fan, water pump, ARGB/RGB, front panel, speaker, COM, CMOS, BIOS burner |
|
BIOS |
128M UEFI, multi-language support |
|
Power Management |
Supports S3/S4/S5 wake, USB wake, timed boot, call boot |
|
Monitoring |
CPU/system fan speed, CPU/system temp, voltage monitoring |
|
LAN / WiFi / BT |
Realtek RTL8125BG 2.5GbE, AX101 WiFi 6, Bluetooth 5.2 |
|
Audio |
Realtek ALC897, up to 5.1 channel |
|
Form Factor |
Micro-ATX (245mm × 245mm) |
|
Warranty |
3 Years |
|
Note |
*Features,Price and specifications are subject to change without notice. |
