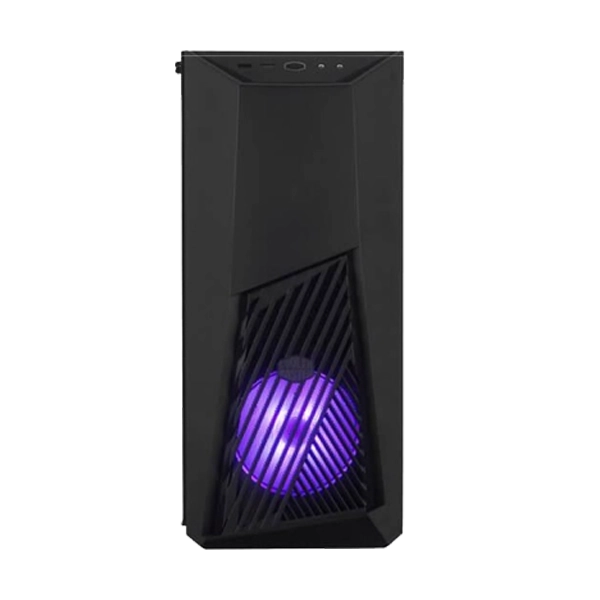

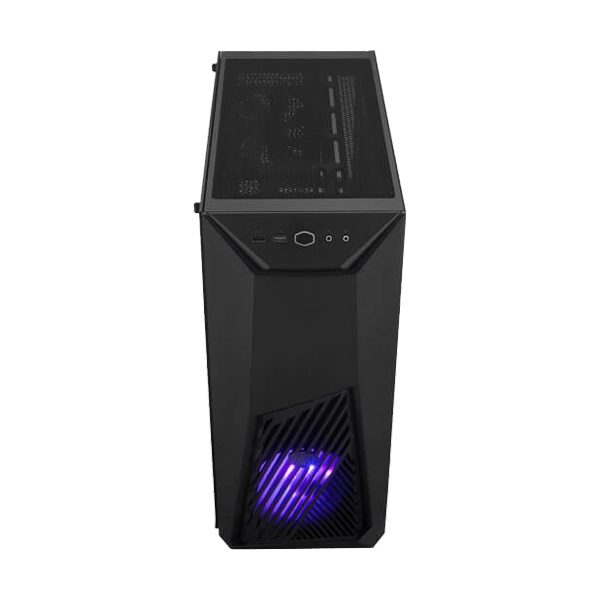

THE MASTERBOX K501L & K501L RGB
Gaming is at the core of the new MasterBox K501 Donning an illuminated fan against the angled front panel ventilation speaks to its competitive character. Support of gaming hardware like long graphics cards, plenty of storage, and liquid cooling take priority in the K501L while still leaving room for future upgrades.
Compatibility with high-performance hardware makes the K501L the essential start in building a monster rig, competitively priced to point the focus toward upgrades.
ANGLED VENTILATION
The aggressive, angled front panel ventilation dons sharp design elements and striking lines, signifying the K501L’s competitive character.
ILLUMINATED FAN AND POWER BUTTON
Paired with lighting on the power button, an illuminated fan glows through the angled ventilation; a testament to its gamer core.
EDGE-TO-EDGE TRANSPARENT SIDE PANEL
Showcase your build through the transparent side panel. The standard K501L comes with an Acrylic panel while the K501L RGB sports a Tempered Glass one.
DUAL 360MM RADIATOR SUPPORT
For enthusiast-grade cooling, two 360mm radiators are supported on the top and front panels to keep the most extreme systems cool.
VERSATILE COOLING OPTIONS
Support for up to seven 120mm fans and 360mm front and top radiator support ensure that performance is not compromised.
MOTHERBOARD SUPPORT
Mini-ITX, Micro-ATX, ATX
VERSATILE COMPONENT SUPPORT
Clearances of 410mm for the graphics card, 165mm for CPU coolers, and 180mm for PSUs offer room for powerful builds and future upgrades.
|
Brand |
Cooler Master |
|
Model Number |
MCB-K501L-KGNN-SR1 |
|
Color |
Black |
|
Materials |
Tempered Glass |
|
Motherboard Support |
Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*support for up to 12" x 10.7", will limit cable management features) |
|
Expansion Slots |
7 |
|
5.25" Drive Bays |
0 |
|
2.5" / 3.5" Drive Bays (combo) |
2 |
|
2.5" Drive Bays |
4 (2+2 combo) |
|
I/O Panel |
1x USB 3.0 Type-A, 1x USB 2.0, 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack |
|
Pre-installed Fans - Top |
N/A |
|
Pre-installed Fans - Front |
1x 120mm RGB LED |
|
Pre-installed Fans - Rear |
1x 120mm |
|
Fan Support - Top |
3x 120mm, 2x 140mm |
|
Fan Support - Front |
3x 120mm, 2x 140mm |
|
Fan Support - Rear |
1x 120mm |
|
Fan Support - Bottom |
N/A |
|
Clearance - CPU Cooler |
165mm/6.49" |
|
Clearance - PSU |
180mm/7.08", 295mm/11.61" (w/ HDD cage removed) |
|
Clearance - GFX |
410mm/16.1" |
|
Cable Routing |
19mm/0.74" |
|
Dust Filters |
Top, Front, Bottom |
|
Power Supply Support |
Bottom mount, ATX |
|
Warranty |
2 Years |
|
Note |
Features, Price and Specifications are subject to change without notice. |
