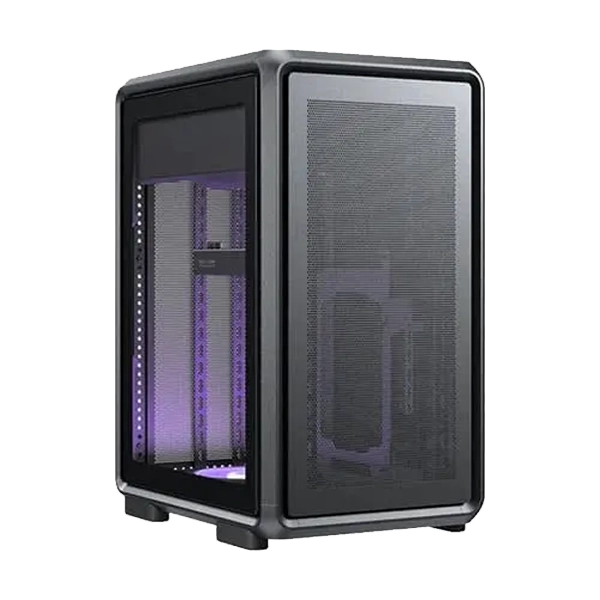

MasterFrame 400 Mesh
The MasterFrame 400 Mesh is a premium open-frame compact chassis crafted for Micro-ATX and Mini-ITX platforms. Embracing the FreeForm 2.0 design philosophy, it features a precision aluminum frame, dual-orientation support, and enhanced mesh airflow. With premium aesthetics and performance-grade clearance, it empowers creators and builders to push compact PC design further.
FreeForm 2.0 Exo-structure
The exposed aluminum frame supports versatile positioning and adapts seamlessly to both vertical and horizontal layouts.
Dual-Orientation Ready
Stand it tall, lay it flat, or flip it sideways. Detachable feet and a smart, adaptable design make it easy to fit any workspace or creative setup.
Compact Motherboard Compatibility
Supports Mini-ITX and Micro-ATX motherboards, delivering optimal compatibility for compact, high-performance builds without compromising cooling or component clearance.
Ample GPU Clearance
Accommodates graphics cards up to 390mm in length, providing full compatibility for high-end GPUs and future upgrades.
Extensive Cooling Support
Supports up to nine fans, including 200 mm fans compatibility, plus top-mounted 360 mm radiators for superior airflow in a compact build.
I
NCLUDED GPU SUPPORT BRACKET
The included GPU support bracket prevents GPU sag and ensures stability during intense gaming or high-performance workloads, maintaining a clean and secure build.
MODERN FRONT I/O
Stay connected and ready for anything - MasterFrame 400 Mesh features USB 3.2 Gen 2x2 Type-C, dual USB 3.2 Gen 1 Type-A, and a combo audio jack for ultra-fast data, charging, and seamless peripheral support.
ARGB VISUAL POWER
Despite its compact size, the MasterFrame 400 Mesh comes alive with a pre-installed 120 mm SickleFlow ARGB fan—quiet, powerful, and fully customizable.
|
Brand |
Cooler Master |
|
Model Name |
Cooler Master MasterFrame 400 Mesh Black |
|
Model Number |
MF400M-KHNN-S00 |
|
Form Factor |
Micro-ATX / Mini-ITX Case |
|
Material |
Steel, Mesh Front Panel, Plastic, Tempered Glass Side Panel |
|
Motherboard Support |
Micro-ATX, Mini-ITX |
|
Dimensions (L × W × H) |
471 x 261 x 373.8 mm (Incl. Protrusions) |
|
GPU Clearance |
Up to 390 mm |
|
CPU Cooler Clearance |
Up to 190 mm |
|
PSU Clearance |
Standard ATX PSU up to 160 mm (longer may depend on cable space) |
|
Expansion Slots |
4 |
|
Storage Support |
1 × 2.5” SSD Bays |
|
|
1 × 3.5” HDD Bay |
|
Fan Support (Front) |
2 x 120mm / 1 x 140mm*, 1 x 180mm*, 1 x 200mm* (*Conditional Support) |
|
Fan Support (Top) |
3 x 120mm / 2 x 140mm / 2 x 180mm*, 2 x 200mm* (*Fan thickness ≤ 25.5mm) |
|
Fan Support (Rear) |
1 × 120 mm (pre-installed SickleFlow ARGB) |
|
Total Fan Capacity |
Up to 9 Fans |
|
Radiator Support (Front) |
240 mm / 280 mm / 360 mm |
|
Radiator Support (Top) |
240 mm / 280 mm / 360 mm |
|
Radiator Support (Rear) |
120 mm |
|
Front I/O Ports |
1 × USB 3.2 Gen 2×2 Type-C |
|
|
2 × USB 3.2 Gen 1 Type-A |
|
|
1 × 3.5mm Combo Audio Jack |
|
Side Panel |
Tempered Glass Panel |
|
Included Fans |
1 × SickleFlow 120 mm ARGB (Black) |
|
Additional Features |
- Built-in GPU Support Bracket |
|
|
- Tool-free Panel Removal |
|
|
- FreeForm 2.0 Open-Frame Structure |
|
|
- Vertical or Horizontal Case Orientation |
|
Power Supply Support |
ATX PSUs (bottom-mounted) |
|
Warranty |
2 year manufacturer warranty |
|
Note* |
Price, features and specifications are subject to change without notice. |
