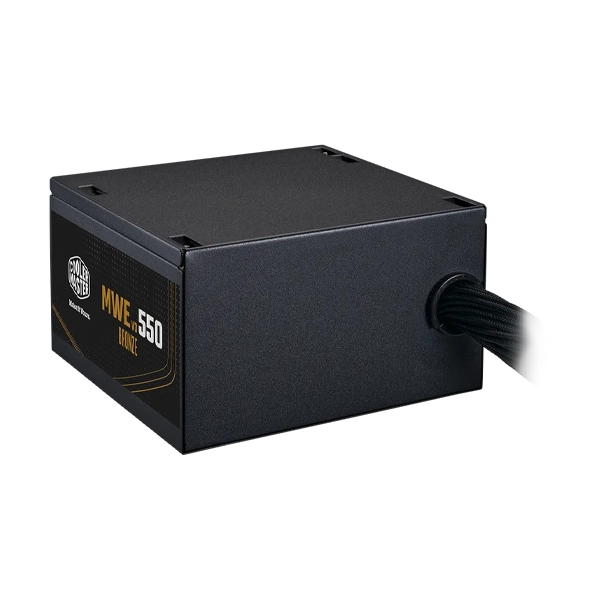

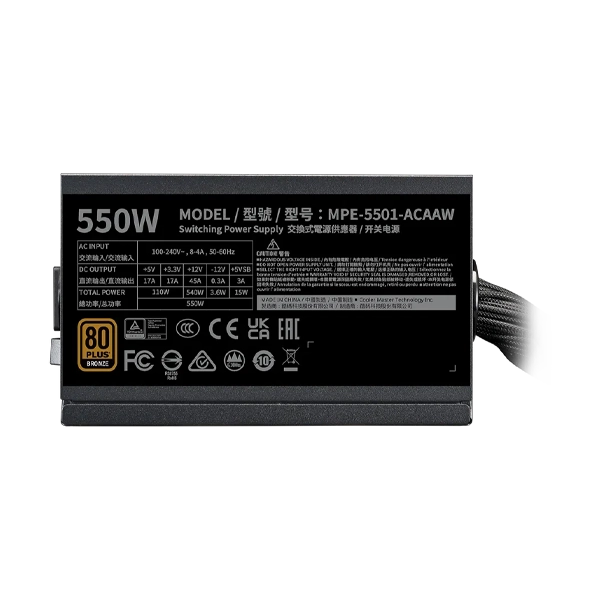

Introducing the MWE Bronze V3 230V, the evolutionary next step in Cooler Master power and the ATX 3.1 upgrade to our MWE Bronze V2 PSU. With features such as 80 Plus Bronze efficiency, a DC-to-DC + LLC circuit design, and a quiet HDB fan cooling, the V3 provides valuable performance in multiple dimensions. Several changes and additions improve the overall user experience. Together, these design choices deliver an advanced PSU that is highly efficient and reliable. With an embossed cable, exceptional temperature resilience and a 5-year warranty, the MWE Bronze V3 will evolve your machine.
Quiet HDB fan
A hydrodynamic bearing fan delivers long-lasting quiet and effective cooling.
80 Plus Bronze efficiency certification
This unit is certified to achieve more than 88% efficiency at typical loads in a 230V test.
ATX 3.1 support
Compliant with ATX 3.1 to fully support a peak power 1.5 times higher than the rated maximum wattage, this unit is ideal for use with the 40 series GPUs.
|
Brand |
Cooler Master |
|
Model |
MPE-5501-ACABW-3BIN |
|
Color |
Black |
|
ATX Version |
ATX 12V Ver. 3.1 |
|
PFC |
Active PFC |
|
Input Voltage |
200-240V |
|
Input Current |
5A |
|
Input Frequency |
50-60Hz |
|
Dimensions (L x W x H) |
140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch |
|
Fan Size |
120mm |
|
Fan Bearing |
HDB |
|
Efficiency |
>88% @ Typical Load |
|
80 PLUS Rating |
80 PLUS Bronze EU 230V |
|
ErP 2014 Lot 3 |
Yes |
|
Operating Temperature |
0-40°C |
|
Power Good Signal |
100 - 150 ms |
|
Hold Up Time |
>16ms |
|
MTBF |
>100,000 Hours |
|
Protections |
UVP / OVP / OPP / OTP / SCP |
|
Regulatory |
TUV, CE, FCC, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region's request.) |
|
Series |
MWE Bronze Series |
|
Category |
500 to 750W |
|
Modular |
Non Modular |
|
80 Plus |
Bronze |
|
Form Factor |
ATX |
|
Watts |
550W |
|
ATX 24 Pin Connectors |
1 |
|
EPS 8 Pin / 4+4 Pin Connectors |
2 |
|
SATA Connectors |
6 |
|
Peripheral 4 Pin Connectors |
3 |
|
PCI-e 6+2 Pin Connectors |
2 |
|
Warranty |
5 Years |
|
Note |
*** Features, Price, Specifications are subject to change without notice. |
